Flutter_17. GridView & Inkwell & FadeImage & Stack







0) 학습 내용

1. GridView & Navigator.push
2. Inkwell & BoxDecoration
3.  meals.dart setup
4. FadeImage
5. Stack & Positioned
6. ModelItemTrait setup





1) GridView & Navigator.push

• Controls the layout of grid: default [top to bottom], [left to right ], [horizontally by 2 ]

<categories.dart>

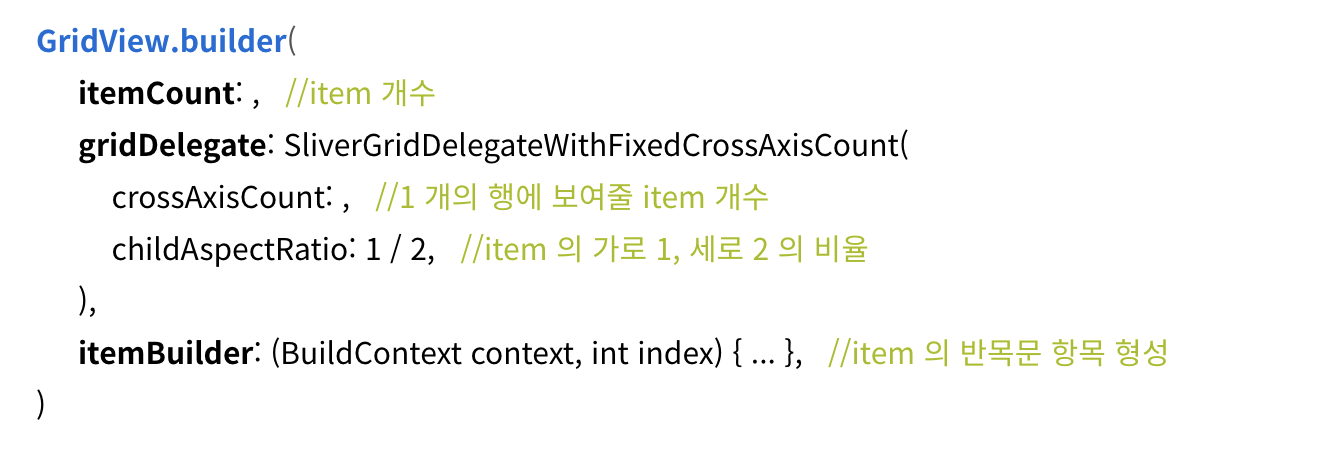

body: GridView(
  padding: const EdgeInsets.all(24),
  // gridDelegate: controls the layout of Grid : top to bottom, left to right,  horizontally 2
  gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
    crossAxisCount: 2, // Row 별 item 갯수
    childAspectRatio: 3 / 2, // item의 가로 세로 비율 => 3줄 가로 / 2줄 세로.
    crossAxisSpacing: 20, // Row item의 간격
    mainAxisSpacing: 20, // Colum item의 간격
  ),
  children: availableCategories  // dummy data
      .map((category) => CategoryGridItem(
          category: category,
          onSelectCategory: () {
            _selectCategory(context, category);
          }))
      .toList(),



• 받은 dummy-category-item 하나당, CategoryItem 에 category-item 과 _selectCategory 함수를 보냄.



void _selectCategory(BuildContext context, Category category) {
  final filteredMeals = dummyMeals
      .where((meal) => meal.categories.contains(category.id))
      .toList();

  // Navigator.push(context, route)
  Navigator.of(context).push(
    MaterialPageRoute(
        builder: (ctx) => MealsScreens(title: category.title, meals: filteredMeals)),
  );
}



• Navigator.push() 메소드를 통해 화면전환 가능.
• MeaterialPageRoute( builder : (context) => 함께 보낼 내용 전달 )



2) Inkwel && BoxDecoration in category_grid_item.dart



<category_grid_item.dart >

// component for single item
import 'package:flutter/material.dart';
import 'package:flutter08_meal/models/category.dart';

class CategoryGridItem extends StatelessWidget {
  const CategoryGridItem({required this.category, super.key, required this.onSelectCategory});

  final Category category;
  final void Function() onSelectCategory;
  @override
  Widget build(BuildContext context) {
    // Inkwell: Event Listener with a Feedback
    return InkWell(
      onTap: onSelectCategory,
      splashColor: Theme.of(context).primaryColor, // visual tapping effect.
      borderRadius: BorderRadius.circular(16),
      child: Container(
        padding: const EdgeInsets.all(16),
        decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(16),
            gradient: LinearGradient(colors: [
              category.color.withOpacity(.55),
              category.color.withOpacity(.9),
            ], begin: Alignment.topLeft, end: Alignment.bottomRight)),
        child: Text(
          category.title,
          style: Theme.of(context)
              .textTheme
              .titleLarge!
              .copyWith(color: Theme.of(context).colorScheme.onBackground),
        ),
      ),
    );
  }
}



• Inkwell : Container 와 같이 별도의  Event-Listener ? 적용할 수 있는 widget.
• splashColor : 탭시, 효과
• BoxDecoration : 박스에 대한 꾸밈을 설정











3) meals.dart Setup (화면 전환 )



<meals.dart>

import 'package:flutter/material.dart';
import 'package:flutter08_meal/widgets/meal_item.dart';

import '../models/meal.dart';

class MealsScreens extends StatelessWidget {
  const MealsScreens({super.key, required this.title, required this.meals});

  final String title;
  final List<Meal> meals;

  @override
  Widget build(BuildContext context) {
    Widget content = ListView.builder(
        itemCount: meals.length,
        itemBuilder: (ctx, index) => MealItem(meal: meals[index]));
    if (meals.isEmpty) {
      content = Center(
        child: Column(
          mainAxisSize: MainAxisSize.min,
          children: [
            Text(
              'No available Item',
              style: Theme.of(context)
                  .textTheme
                  .headlineLarge!
                  .copyWith(color: Theme.of(context).colorScheme.onBackground),
            ),
            const SizedBox(height: 16),
            Text(
              'Try Select a different category',
              style: Theme.of(context)
                  .textTheme
                  .bodyLarge!
                  .copyWith(color: Theme.of(context).colorScheme.onBackground),
            )
          ],
        ),
      );
    }
    return Scaffold(appBar: AppBar(title: Text(title)), body: content);
  }
}



• 받은 meals 의 갯수가, 비어있지 않은 경우 meal_item && 비어있는 경우 비어있다고 알려줌.







4)  FadeInImage in meal_item.dart



import 'package:flutter/material.dart';
import 'package:flutter08_meal/models/meal.dart';
import 'package:flutter08_meal/widgets/meal_item_trait.dart';
import 'package:transparent_image/transparent_image.dart';

class MealItem extends StatelessWidget {
  const MealItem({super.key, required this.meal});

  final Meal meal;

  String get getComplexityText {
    return meal.complexity.name[0].toUpperCase() +
        meal.complexity.name.substring(1);
  }
  String get getAffordability {
    return meal.affordability.name[0].toUpperCase() +
        meal.affordability.name.substring(1);
  }

  @override
  Widget build(BuildContext context) {
    return Card(
      margin: const EdgeInsets.all(8),
      shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(8)),
      clipBehavior: Clip.hardEdge,
      //overflow: hidden
      elevation: 2,
      child: InkWell(
        onTap: () {},
        // stack: position multiple widgets above each other, but not above each other as column
        child: Stack(
          //stack ignores shape attribute.
          children: [
            // display an Image in fade.
            // flutter  pub add transparent_image
            FadeInImage(
              placeholder: MemoryImage(kTransparentImage),
              image: NetworkImage(meal.imageUrl),
              fit: BoxFit.cover,
              // fit
              height: 200,
              width: double.infinity,
            ),
            // Positioned widget: can give tlbr info to positioni the child.
            Positioned(
              bottom: 0,
              left: 0,
              right: 0,
              child: Container(
                color: Colors.black54,
                padding:
                    const EdgeInsets.symmetric(horizontal: 44, vertical: 5),
                child: Column(
                  children: [
                    Text(
                      meal.title,
                      maxLines: 2,
                      textAlign: TextAlign.center,
                      softWrap: true,
                      overflow: TextOverflow.ellipsis,
                      style: const TextStyle(
                          fontSize: 20,
                          fontWeight: FontWeight.bold,
                          color: Colors.white),
                    ),
                    const SizedBox(height: 12),
                    Row(
                      mainAxisAlignment: MainAxisAlignment.center,
                      children: [
                        MealItemTrait(icon: Icons.schedule, label: '${meal.duration} min'),
                        const SizedBox(width: 12),
                        MealItemTrait(icon: Icons.work, label: getComplexityText),
                        const SizedBox(width: 12),
                        MealItemTrait(icon: Icons.work, label: getAffordability),
                      ],
                    )
                  ],
                ),
              ),
            )
          ],
        ),
      ),
    );
  }
}



• FadeInImage  =>

• 온라인에서 이미지를 다운로드할 때, 일정 시간이 걸려서 아무것도 안보이는데, 올바르지 않음
• 온라인에서 이미지를 다운로드할 때, 빈 칸이 보여지고, 이미지를 천천히 (fade-in) 해서 가져옴.
• Terminal:  flutter  pub add transparent_image

FadeInImage(
  placeholder: MemoryImage(kTransparentImage),
  image: NetworkImage(meal.imageUrl),
  fit: BoxFit.cover,
  // fit
  height: 200,
  width: double.infinity,
),







5)  Stack & Positioned in meal_item.dart









• Stack: Column 과 Row는 각각 세로, 가로 방향으로 순서대로 배치하지만, 겹쳐있듯이, 원하는 대로 배치할 경우 사용
• Positioned: Stack은 단지 정해진 위치나 규칙 없이 위젯들을 배치하기에, 사용자가 직접 위치를 등록해야되는데, 이때 사용



Positioned(
  bottom: 0,
  left: 0,
  right: 0,
  child: Container(
    color: Colors.black54,
    padding:
        const EdgeInsets.symmetric(horizontal: 44, vertical: 5),
    child: Column(
      children: [
        Text(
          meal.title,
          maxLines: 2,
          textAlign: TextAlign.center,
          softWrap: true,
          overflow: TextOverflow.ellipsis,
          style: const TextStyle(
              fontSize: 20,
              fontWeight: FontWeight.bold,
              color: Colors.white),
        ),
        const SizedBox(height: 12),
        Row(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            MealItemTrait(icon: Icons.schedule, label: '${meal.duration} min'),
            const SizedBox(width: 12),
            MealItemTrait(icon: Icons.work, label: getComplexityText),
            const SizedBox(width: 12),
            MealItemTrait(icon: Icons.work, label: getAffordability),
          ],
        )
      ],
    ),
  ),
)

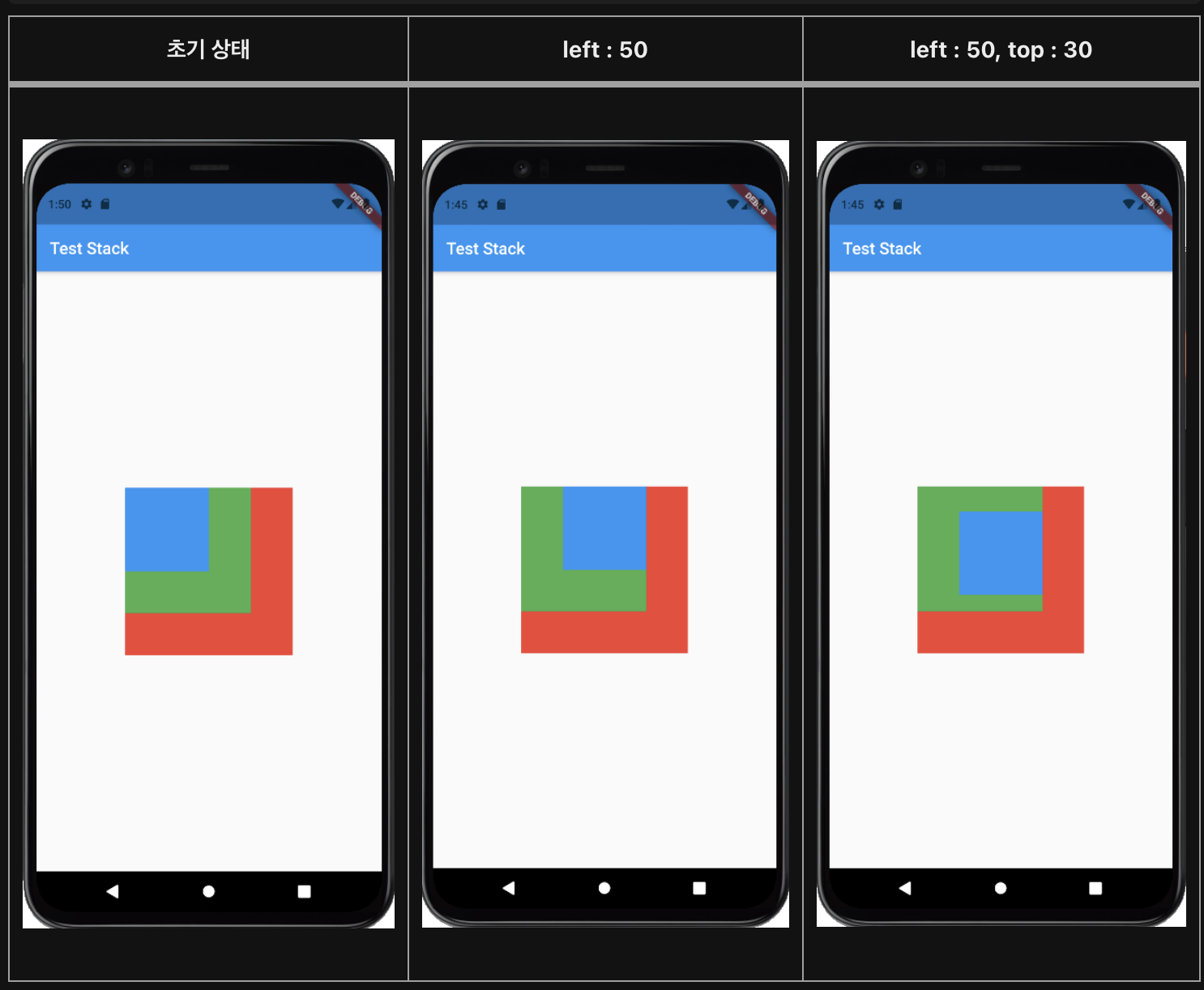

https://velog.io/@sharveka_11/Positioned : 위치 파악

• 여기서 positioned widget 의 위치 시작점은 Stack 안에 있는 FadeImage 기준으로 잡히게 된다.
• 따라서, Positioned 의 값이 bottom: 0, left: 0, right: 0 이므로, FadeImage 기준으로 위치가 잡힘







6) ModalItemTrait.dart Setup



import 'package:flutter/material.dart';

class MealItemTrait extends StatelessWidget {
  const MealItemTrait({super.key, required this.icon, required this.label});

  final IconData icon;
  final String label;

  @override
  Widget build(BuildContext context) {
    return Row(
      children: [
        Icon(
          icon,
          size: 17,
          color: Colors.white,
        ),
        const SizedBox(
          width: 6,
        ),
        Text(
          label,
          style: const TextStyle(color: Colors.white),
        )
      ],
    );
  }
}
